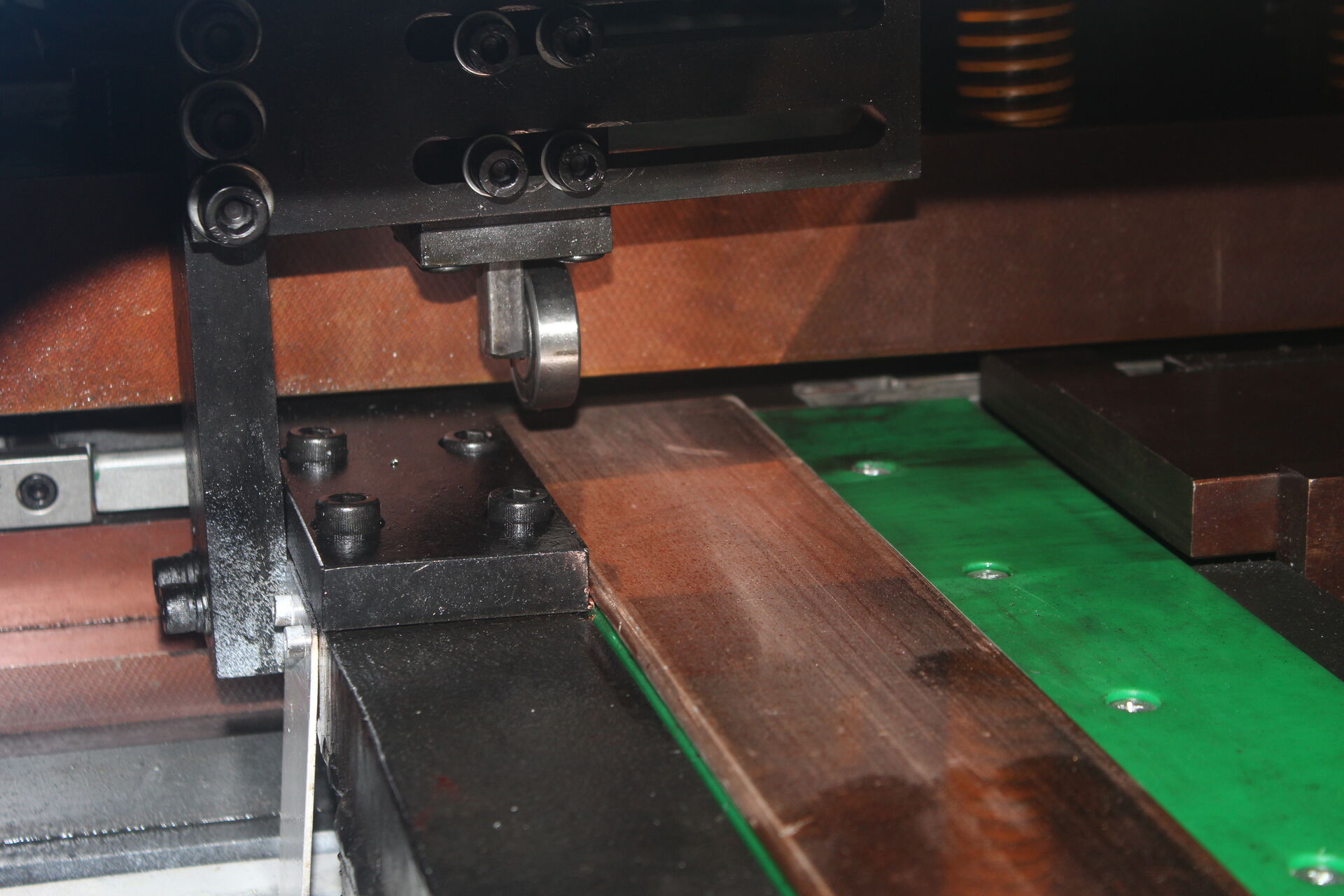

Intelligent 3D Busbar Punching and Shearing Machine (EMAC-BP-40)

PRODUCT DETAILS

Advantages :

1. German Smart Punch technology, faster and more economical

2. User-Friendly Software: Intelligent 3D software seamlessly reads 3D or 2D drawings directly.

3. AIRLINK Technology: Intelligent model includes AIRLINK for real-time sharing of drawings and files. This represents the leading technology globally.

4. Versatile Moulding Options: German in-line mould library with 6, 9, and 15 configuration options.

5. Flexible Shear Mode: Utilize punching shear, single shear, and saw cutting options for diverse applications.

6. Enhanced Productivity: Optional automatic feeding system available to boost efficiency.

7. Intelligent bus optimization blanking and inventory management software

8. The whole machine is delivered without installation and commissioning.

9. Free video tutorials online

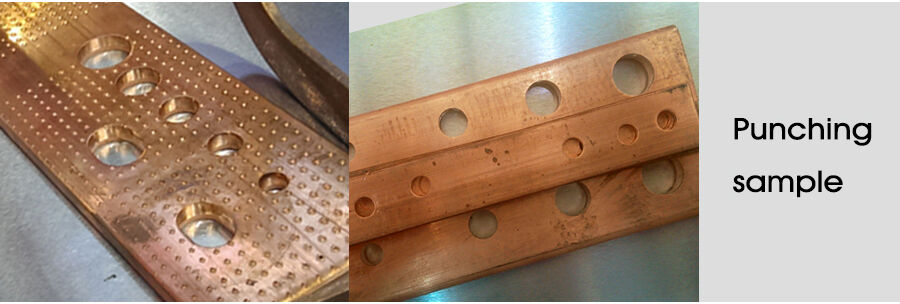

Workflow:

3D Design → Simulate Running → Load on Busbar → Start Punching and shearing → Finished Punch and Cut

Main Technical Parameters：

Description			Unit	EMAC-BP-40
Press Force	Punch Unit		KN	400
	Shear Unit		KN	400
X Max Speed			m/min	100
X Max Stroke			mm	1500
Y Max Speed			mm	100
Z Max Speed			mm	60
Minimum Oddment Length			mm	55
Max Hit Speed			HPM	150
Tool Kit		Punch Mold	set	5
		Shear Mold	set set	1
Control Axis				3
Hole Pitch Accuracy			mm/m	±0.20
Max Hole Punch Size			mm	32
Max Busbar Size (W*H)			mm	6000x150x12mm
Total power			kw	15
Machine Size: L*W			mm	6600x2180
Machine Weight			kg	6300

Main Configuration：

Control Section
No.	Name			Brand Name
1	PLC			SIEMENS
2	Sensor			SIEMENS
3	Control Button			SIEMENs
4
5	All-In-One Computer			BEIENE
6	AC Contactors			SIEMENS
7	Circuit Breaker			SIEMENS
8	Servo Motors			SIEMENS
9	Servo Drivers			SIEMENS
10	Design and Program 3D Software			SMARTBAR
Transmission System
No.			Name	Brand Name
1			Precision Linear Guide Rail	Taiwan HIWIN
2			Precision Ball Screw	TBI
3			Bearing	Japan NSK
Hydraulic Section
No.		Name		Illustration
1		Solenoid valve		Italy Atos
2		High Pressure Tube		Germany
3		High Pressure Oil Pump		USA Albert

Shipment

Certifications

Our Service

--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.
