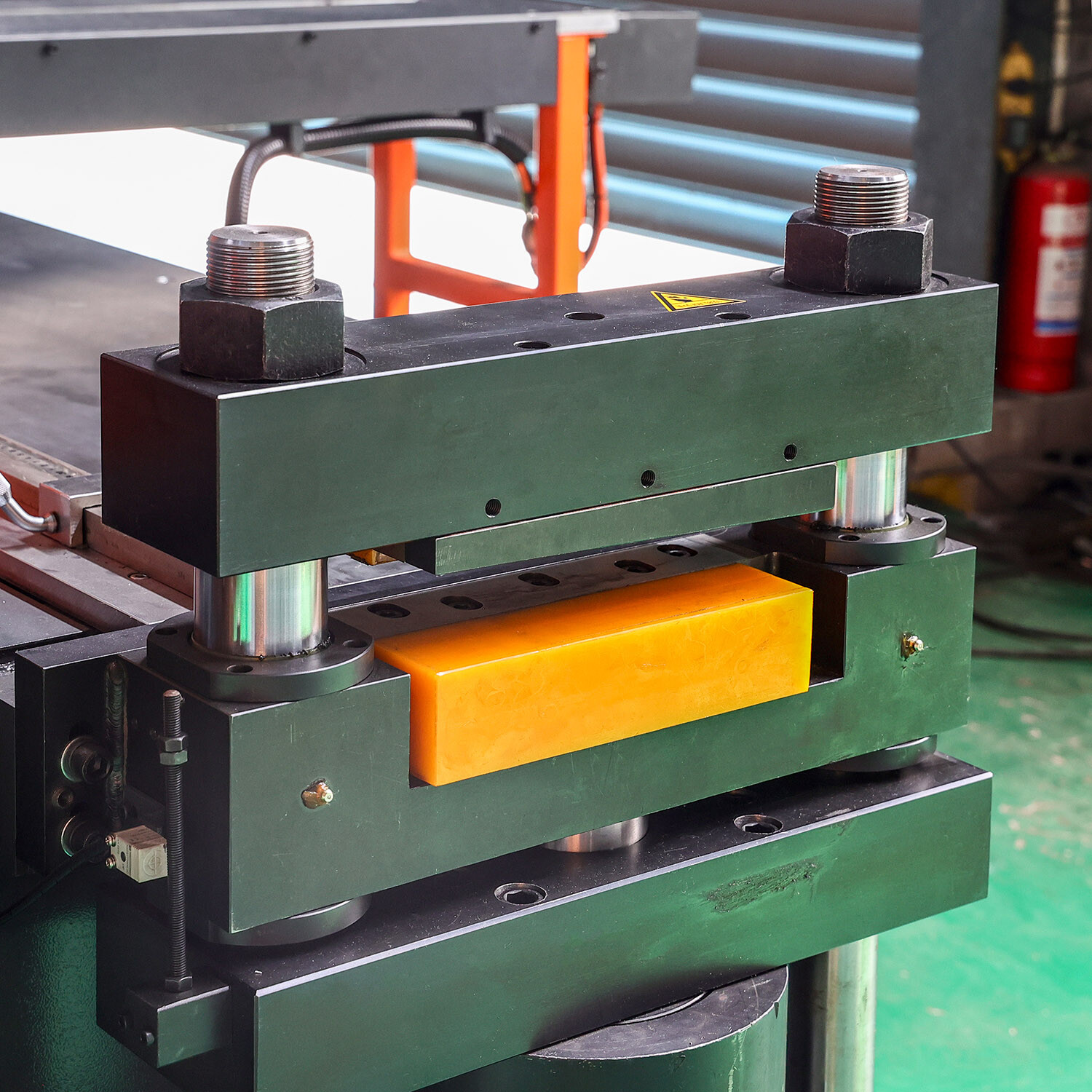

Intelligent 3D Busbar Processing Machine SMART-303CNC-S

PRODUCT DETAILS

Advantages :

1.BEIENE 3D intelligent control center

2.AIRLINK Technology: Intelligent model includes AIRLINK for real-time sharing of drawings and files. This represents the leading technology globally.

3. Intelligent 3D software seamlessly reads 3D or 2D drawings directly.

4.Fully automatic CNC bending

5.Simulation demonstration of bending sequence

6.Turret Punching Unit 6S/8S

7.Multi-purpose: flat bending, vertical bending, twisting, embossing, line nose, Z bending, U bending, cutting, punching

8.Intelligent copper bar management software (optional)

Main Technical Parameters:

Item	Unit	Parameter
Nominal Force	KN	300
Bender Accuracy	Degree	±0.2
Max Bending Stroke	mm	250
Automatic Stroke	mm	1000
Max Motion Speed of Side Striker(X Axis)	m/min	15
Bending Head (Y Axis)	m/min	Fast: 5; Low: 1.25
Min Inner Width of U-shape Bend	mm	40 (Note:Please consult us for smaller dimensions)
Max Punching Capacity	mm	160x15mm
Max Cutting Capacity	mm	160x15mm
Max Bending Angle	degree	90
Level Bending (W*H)	mm	160 × 15 (Customerized 250x20mm)
Vertical Bend (W*H)	mm	125×15
Total Power	kw	7.2
Main Machine Dimension: L*W	MM	1500x1200x1200
TOTAL Weight	kg	2000kg

Configuration：

Control Section
Serial No.	Name			Brand Name
1	Programmable Control			SIEMENS
2	Sensor			Telemacanique From Schneider
3	Control Button			SIEMENS
4	Touch Screen			All In One Touch Screen Windows Computer
5	Computer
6	AC Contactors			ABB
7	Circuit Breaker			ABB
8	Servo Motors			SIEMENS
9	Servo Drivers			SIEMENS
10	Control Program Software			Update GJ3D
Transmission System
Serial No.		Name	Brand Name
1		Precision Straight rail	Taiwan HIWIN
2		Precision Ball Screw	Taiwan HIWIN
3		Bearing	Japan NSK
Hydraulic Section No.NameIllustration1Solenoid valveRexroth 2High Pressure TubingGermany Rivaflex3High Pressure Oil PumpSG Rexroth

Details Photo:

Automatic Bending Gauge
Siemens PLC and SERVO Control
Windows All in One Touch Screen Computer First 3D Busbar Design Software which can read CAD or Solid work drawings and Do Bending from your Drawing Directly!
Wifi and ready for your Industry 4.0
Greatly Save and Benefit Customer
Whole-Installed Shipment

Shipment

Certifications

Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.
